双色照明按钮开关

SPL12 Series

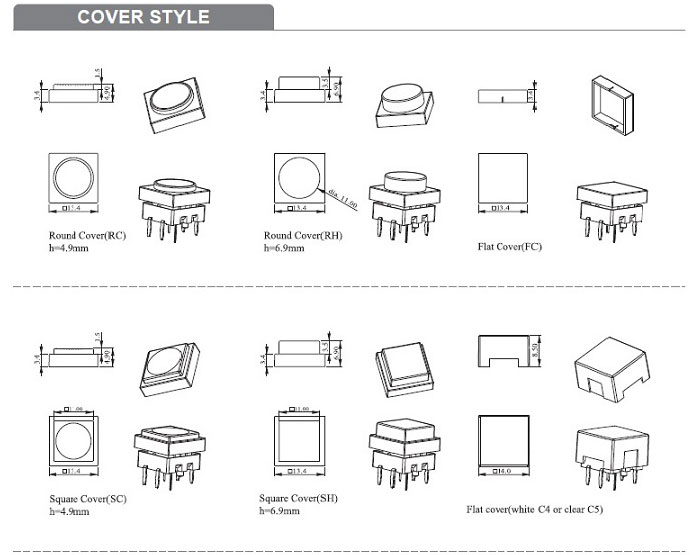

带灯按钮开关，可提供多种颜色的上盖及LED灯色。 SPST功能，行程0.3mm， Rating12V DC 50mA

产业应用
公共建筑空间
家庭(居家)安全
商业(用)建筑
工业(机械)设备

规格说明
Circuit: SPDT
Current Rating: 50mA @ 12VDC
Contact Resistance: 100m Ohm Max. (initial)
Insulation Resistance: 100 M Ohm Min.
Operating Force: 300 gf ± 50 gf
Total Travel: 0.3mm ± 0.1mm
Operating Life: 5,000,000 Cycles Min.
Operating Temperature: -25 deg. ~ +60 deg.
Solder Specifications: 260 deg. for 3 seconds

材料
Cover: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Housing: Polyamide (PA)
Base: Polyamide (PA)
Lamp Term .: Phosphor bronze (PBS) with gold plating
Act. Dome: Phosphor bronze (PBS) with silver plating
End Term.: Brass with gold plating
LED: Surface Mount Chip LED
